Aesus DELTA Panel Labeler

 One two three or four panels

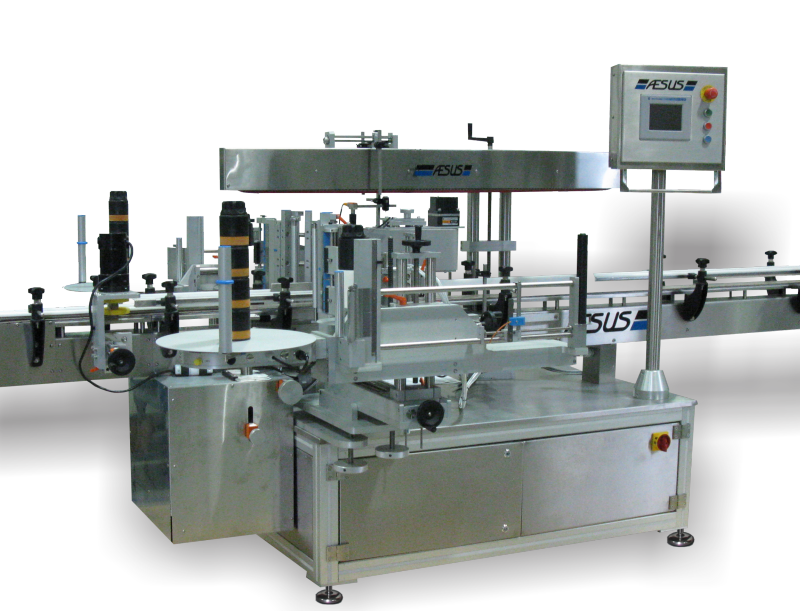

Delta Panel Labeler

The Delta series of labellers have larger Cabinets heavier top plates and multiple adjustments X Y Z and Tilt. With speeds of 180 per minute or more the Delta-Panel includes the powerful Servo H400 PREMIUM head and a stainless steel enclosed base Cabinet with an anodized aluminum top plate, and a 9’ long sanitary raised bed Stainless Steel conveyor.

Because of the larger cabinet and large heavy duty top plates the Delta labeller range can have printers, vision systems, barcode readers fitted to the label head, along with reject systems. The larger cabinet enables integrated control systems to be mounted within the Cabinet.
Typically equipped with an Allen Bradley plc (or equivalent) with touch screen sporting recipe management for easy recall of setups.

The machine comes complete with a variable speed product separation wheel with optional belt or worm feed aligners

The Delta-Panel can be
equipped with a removable wrap belt to enable panel and wrap labelling on the same machine.



Please look at our accessories page to see the myriad of accessories that is possible to install on these versatile machines.



Label heads way beyond the rest

  • Years in development, engineers designed the definitive Servo controlled labeling system. Everything they and their Clients could think of over the last 103 years of Labeling history has been incorporated!!

Some of the features include...

  • No bulky control box or heavy interconnecting leads
    Compact design Quick release core holders and take up roll.
    Built in user friendly display screen.
    Custom Servo control designed perfectly for label applications with appropriate ramp up and ramp down
    Built in Encoder follower circuits to precisely follow a Conveyor or Rotary turret drives
    Variable speeds and adjustable Gear ratios Start delays, stop delays, missing label advances, shift registers.
    Patented Inductive label sensor that can mount right at the dispense blade to handle even Mylar labels, without the need to play with photo electrics which can dust up.
    Patented moving dispensing beak to ensure that difficult labels are precisely dispensed
    Hook ups for Printers, barcode readers, print engines
    A Myriad of bolt on standard options are available to handle the most demanding challenges.
  • Quick Change Reels

    An Exclusive H400 feature is the twist on/twist
    off Core and rewind holders.

    Just twist a knob and the core is released
    to load fresh Labels. The same system
    for the backing paper.

    Just the faster label changes will
    probably pay for your Head!





    Maintenance

    • No proprietary components
    • Maintenance-free servo motors
    • Stainless steel and anodized aluminum construction

    Many Accessories

    We have many many accessories, have a look at some on our Accessory Page

     or give us a call.

The Delta Panel has heavy duty plates with precision shafting, siko style
numerical adjusters in many areas and graduated scales for easy repeat setups
.

Prism Roller system

Extremely popular is the Aesus Prism roller system.
The prism system is for highly accurate wrap labeling and can be attached to panel labelers with a color HMI screen.
Twin adjustable rollers grasp the container against the wrap belt holding the container perfectly aligned; once in perfect alignment the label is dispensed.
The prism system can be used to dispense two (or more) labels onto the same container with an adjustable time interval in between label dispenses. It can be also used to align a label with a witness mark, handle, plunger or other mark.

  • Video of Panel  Labelers

    Click Image below for Video - Several views of Panel labellers


    Click the image to View Video


    We have many more videos and much more information....Contact us for details.
