Upgrade your Rotary Labellers.

An extremely high speed but compact label head, designed specifically for Rotary Labelers with completely integrated control.

• The Labelling module is based upon the outstanding world proven H400 applicator
• It can be adapted to any rotary labeler
• High labelling speed and incredible precision: up to 5,700”/min (145meters/min)
• High labelling output: 1000 – 2000 labels per minute
• Adjustable height and angle
• Automatic speed synchronization with the Rotary labeler
• Serial data connection option for a higher-level control system
• Controls are completely integrated into the head, no separate control cabinet.

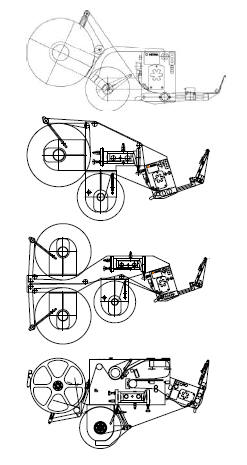

Variations

Basic
Up to 1,600”/min (40 m/min) or 16,000 labels/hour
Reel diameter up to 12” (300 mm)
Fine height adjustment at labelling module, including tension anchor.

Standard 1
Up to 2,400”/min (60 m/min) or 25,000 labels/hour
Reel diameter up to 16” (400 mm)
Fine height adjustment via pedestal 30
Adjustment in two angles

Standard 2
Up to 2,400”/min (60 m/min) or 25,000 labels/hour, incl. double
reel holder for accelerated reel change
Reel diameter up to 16” (400 mm)
Fine height adjustment via pedestal 30
Adjustment in two angles

High-Speed
Up to 4,800”/min (120 m/min) or 55,000 labels/hour,
incl. loop unwinder
Reel diameter up to 16” (400 mm)
Fine height adjustment via pedestal 30
Adjustment in two angles

• End of reel sensor
• Diminishing reel sensor
• I/O interface
• Serial connection via RS 485
